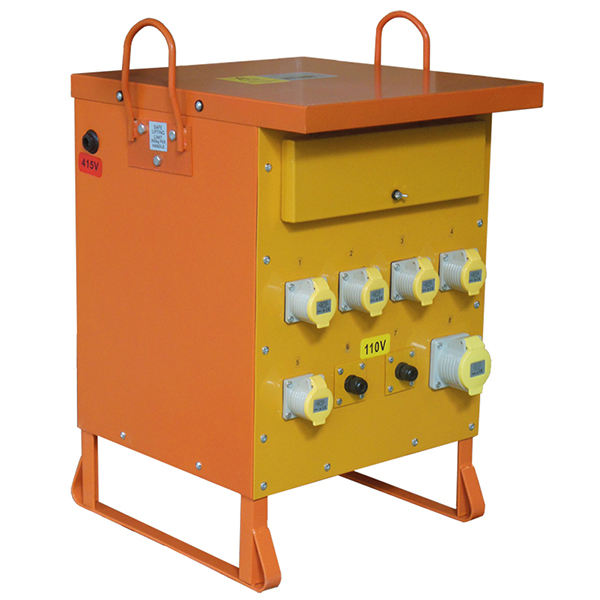

Manufactured to the highest quality,the Jefferson 10kVA site transformer comes complete in a steel construction to make it robust and durable in tougher conditions.

• Input: 415V ~ 50Hz – 32A
• Output: 5x 110V C.T.E ~ 50Hz – 16A
• – 1x 110V C.T.E ~ 50Hz – 32A
• Max. Rating: 10kVA (5mins on 15mins off)
• Continuous Rating: 7.5kVA
• Power Factor: 0.93 Cos
• Ingress Protection: IP22
• Phase: Three Phase
• Weight: 80kg
• Dimensions (H x W x L): 780 x 515 x 540mm
