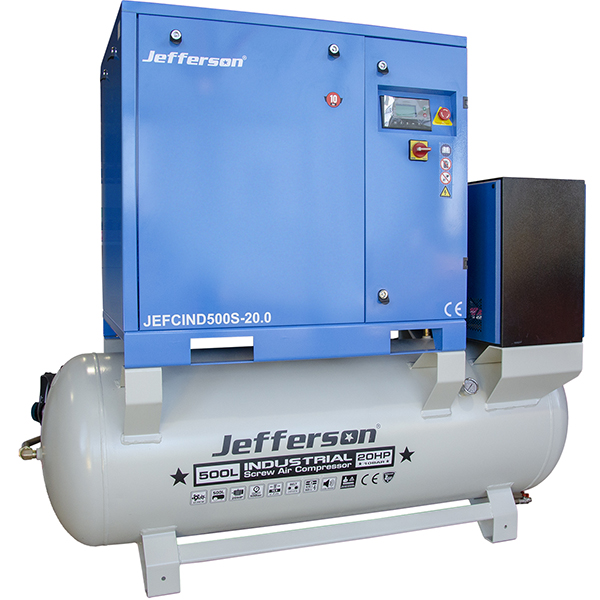

Belt-driven rotary screw compressor designed for high-capacity continuous, industrial use
Fitted with an efficient heavy duty three-phase electric motor (IE3)
Variable or fixed speed belt drive running modes
High capacity Rotorcomp® screw air end
Quiet running performance, ideal for environments requiring low noise emissions
Powder-coated solid steel cabinet housing with foam noise insulation barriers
100% duty cycle application
Air dryer system
Automatic time-controlled drain system & easy front end access for maintenance tasks
Advanced controller system
Automatic drain valve
Welded tank fully-compliant with the latest European manufacturing & safety standards

• Tank Capacity: 500L
• Voltage: 415V (3 Phase)
• Current: 50A
• Motor: 20HP / 15kW
• Max. Pressure: 10.5Bar / 152psi
• Air Displacement: 2149L/min / 75.9cfm
